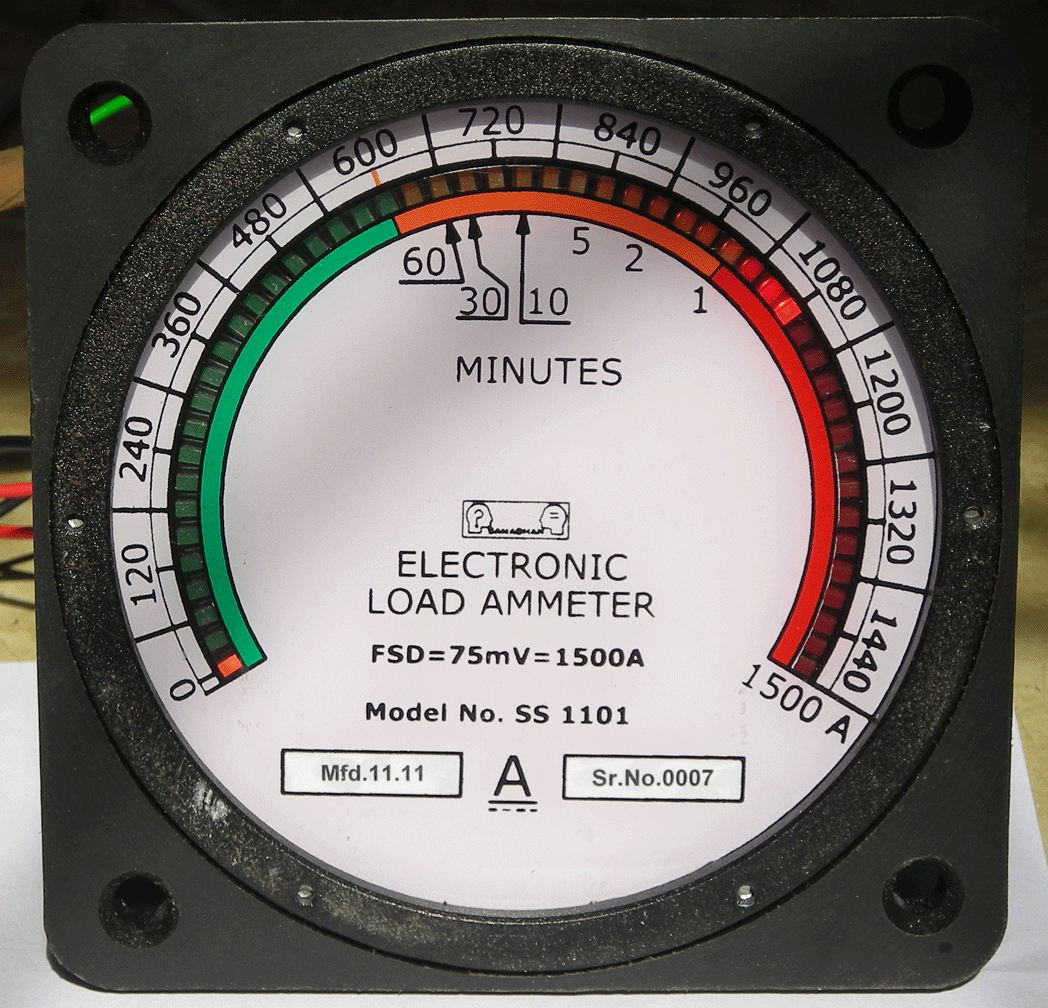

This meter has been developed to support Railway’s need for a rugged and consistently accurate Load Ammeter for Diesel Electric Locomotives like WDM2/DEMU etc. This meter has been developed to overcome the disadvantages of needle type meters and has the following advantages over them.
Advantages over usual needle type meters:
- moving parts and hence no wear.
- No delicate spring/needle to get damaged.
- No permanent magnet, no degeneration of magnetic field and therefore no need to calibrate often.
- Much better expected life than the needle type. Expected seven years with minimal service.
- Much better visibility in poor lighting condition as LEDs themselves glow. No requirement of gage lighting.
- No requirement of series resistance
- Solid & rugged, dust, water and insect resistant case.
- Lighted colour bars for indicating normal condition, caution etc.
The display is ergonomically designed & driver’s attention need not be diverted from track to get a feel of magnitude.
These type of meters have passed various tests, loco trial and led to part-I approval by DLW.
ORDERING SPECIFICATION FOR ELECTRONIC LOAD AMMETER FOR BHEL LOCOMOTIVES GENERALLY BASED ON BHEL SPEC. NO. LME/PUR/303 AND AS PER
| Type | Electronic |
| Display | LED Curve graph (Comet mode type) |
| No. of Points | Fifty plus one |
| F.S.D. | 1500Ampere (DC) |
| Shunt Drop | 75mV (Shunt BHEL Supply) |
| Operating voltage | 72V DC nominal |
| Dial Size (Visible) | 112mm Approx. |
|
No of Green LEDs No of Orange LEDs No. of Red LEDs Green Band Orange Band Red Band Orange Mark Legend |

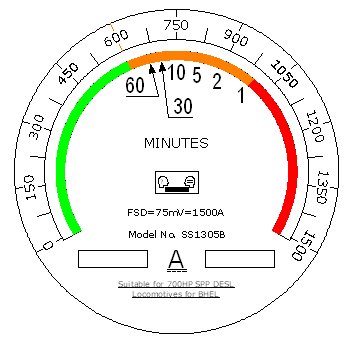

As per Drawing No. DTI- 072 |
| Size and Bolt Holes | Bolt holes and panel cutout will be as per our Drawing No.DTI-072. |
| Design | Sturdy and rugged to suit Railroad Duty |
| Casing | Made of proprietary material with high degree of insulation and impact resistance. Dust, Water and Insect resistant design. |
| Technology | Wholly Indigenous |
| Weight | 625 grams approx. (With Gasket and Stainless Steel Mounting Hardware). |
